ADVANCED SLIDING PATIO DOORS
ADVANCED SLIDING PATIO DOORS
⠀
Advanced Window Corp. has been a trusted manufacturer of high-quality vinyl patio doors since 1995. Renowned for its precision craftsmanship, durability, and exceptional energy efficiency, Advanced Window Corp. combines modern design with superior performance in every door. With a strong commitment to excellence, the company delivers products that enhance both the aesthetics and functionality of any space, making it a top choice for homeowners, builders, and professionals seeking reliable and stylish patio door solutions.
As an experienced contractor, ARDMOR Windows & Doors ensures expert installation, replacement, and repair of Advanced sliding patio doors. A long-standing partnership with Advanced allows ARDMOR to offer top-tier solutions with a seamless process – from product selection to flawless installation. High-quality service, attention to detail, and professional expertise guarantee lasting performance and customer satisfaction.
⠀
Standard Features
Frame depth: 4-7/8” with mullion grooves and integrated nailing fin (optional new construction installation)
Sizes: 3 standard widths (5’, 6’, 8’) with 6’-8” height; custom sizes available
Operation: Single operable sash (left or right-handed)
Performance: High-density internal walls for thermal, structural, and sound insulation
Air tightness: Integrated interlock system on meeting rail to reduce air infiltration
Construction: Fully welded frame and sash for maximum strength
Design: Equal lite configuration
Sash options: Lift function for easy removal, anti-lift insert for added security
Threshold: Anodized aluminum with Q-LON gasket
Screen track: Anodized aluminum
Rollers: Stainless steel track with double tandem concealed steel rollers (adjustable, with steel bearings)
Locking system: 2-point mortise lock with narrow line
Handles: Intuition Handle with semi-automatic operation, keyed outside metal pull handle (powder coated)
Additional security: 2-position foot lock for ventilation and enhanced protection
Screen: Lockable extruded aluminum frame with fiberglass mesh
Glazing: Internal for added security; double or triple glass options
- Door: U-value as low as 0.23 (double), 0.18 (triple)
- Fixed unit: U-value as low as 0.22 (double), 0.16 (triple)
Reinforcement: Galvanized steel inside sash and mullion, encapsulated with insulating chambers
Optional Enhancements
Colors: Solid white or tan, unlimited custom colors with eco-friendly water-based paint
Finishes: “Art-Wood” finishes, powder-coated and metallic handle options
Security: 4-point locking mortise lock
Glass options: Multiple LoE coatings and gas fills
Grids: Decorative internal or external grid options
Accessories: Couplers, brick moldings, nail fin
Screens: Aluminum or pet-resistant mesh
Blinds: Internal blinds for added privacy and convenience
Colors
Advanced Window Corp. offers a wide range of exterior and interior color and finish options designed specifically for vinyl doors. High-performance coatings are engineered for durability, heat reflectance, and long-lasting appearance. Waterborne formulations are non-toxic, environmentally friendly, and free from lead and chromates.
The coating is developed for PVC, providing excellent adhesion and elasticity. It moves with the vinyl during temperature changes while maintaining strong resistance to abrasion and impact. Advanced additives help maintain color stability while reducing heat absorption over time.
Laminates
Decorative laminate films undergo comprehensive in-house testing, including heat reflectivity, fade resistance (Delta E), distortion, and adhesion. This process allows Advanced Window Corp. to offer a lifetime warranty on the laminate bond.
Warranty
Advanced Window Corp. provides a 10-year warranty on painted vinyl finishes for exterior and/or interior surfaces.
A variety of colors, finishes, and grid styles are available. Current customization options and combinations can be confirmed with ARDMOR Windows & Doors, an authorized contractor working with Advanced Window Corp., to help select the most suitable solution for each project.
Standard External Colors & Finishes
White
Almond
Bronze
Black
Custom Color Examples
Royal Bronze
Cocoa
Bonneville Green
Standard Internal Colors & Finishes
White
Almond
Black
Laminated Color Examples
Light Oak
Dark Oak
⠀
Glass Options
⠀
Frosted Glass
Matte Frost Glass
Rain Glass
Patterned glass, also known as obscured or decorative glass, features textured designs pressed into the surface. These patterns provide privacy while still allowing light to enter. Popular options include frosted, rain, glue chip, and matte finishes.
Tinted glass helps reduce glare and limits fading caused by sunlight. It is often used to enhance exterior appearance while improving comfort indoors. Common tint options include gray and bronze.
Coated glass features an invisible metallic layer that allows natural light to pass through while improving performance. Certain coatings help reflect heat, increase energy efficiency, and make the glass easier to maintain.
Tempered
Laminated

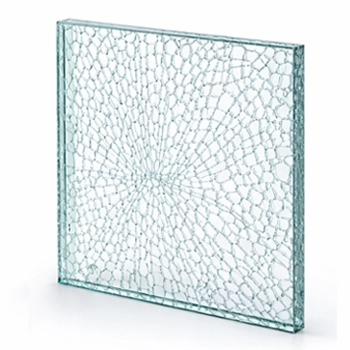

Tempered Glass is heated to high temperatures and rapidly cooled, making it up to four times stronger than annealed glass. When broken, it shatters into small, blunt pieces designed to reduce the risk of injury.

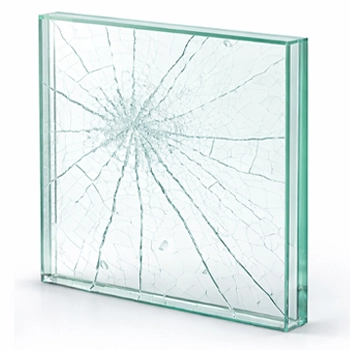

Laminated Glass is made by bonding two panes of glass with a clear interlayer. If broken, the glass remains held together, improving safety and helping protect against forced entry.
⠀

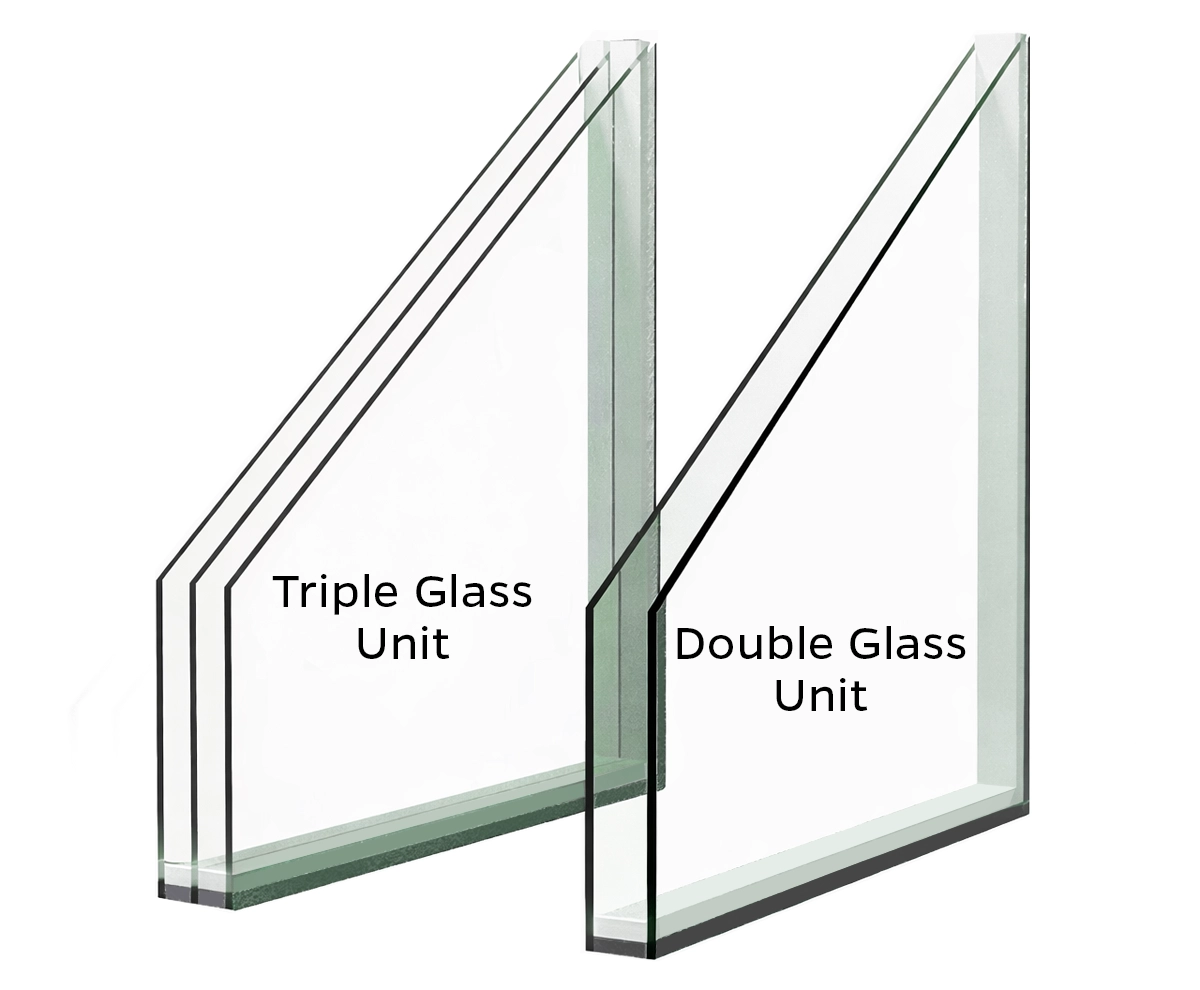

Insulated Glass Units
⠀
All door products are equipped with insulated glass units (IGUs). IGUs are available in double- or triple-pane configurations and are designed to improve energy efficiency, comfort, and durability.
Each insulated glass unit is covered by a 20-year warranty against seal failure, meeting the highest standards in the fenestration industry. IGU thickness varies by product and configuration, with glass panes available in annealed, heat-treated, tempered, or laminated options. Units can also be customized with low-emissivity (Low-E) coatings, tints, or decorative patterns.
All exterior-facing glass surfaces include a NEAT® protective coating, which helps reduce water spotting and allows for easier, low-maintenance cleaning.
Spacer Systems & Gas Fill use advanced warm-edge spacer technologies to separate glass panes and improve overall performance. Stainless steel and flexible composite spacers help reduce heat transfer, while dry air, argon, or argon-krypton gas fills enhance thermal insulation and sound reduction.
Decorative Options include grids or internal blinds sealed inside the insulated glass unit. These elements add visual interest or functionality while remaining protected from dust and moisture, with no need for cleaning or maintenance.
All insulated glass units are manufactured under strict industry standards and regularly tested to ensure consistent performance and reliability.
Advanced Window Corp. is certified as an insulated glass manufacturer by Keystone Certifications Inc. under the ANSI program for insulated glass unit producers.
⠀
Grids
⠀
Grids are available for sliding doors and are sealed inside the insulated glass unit, so they enhance the door’s appearance without affecting cleaning or operation. This design adds visual character while maintaining energy efficiency and low maintenance.
⠀

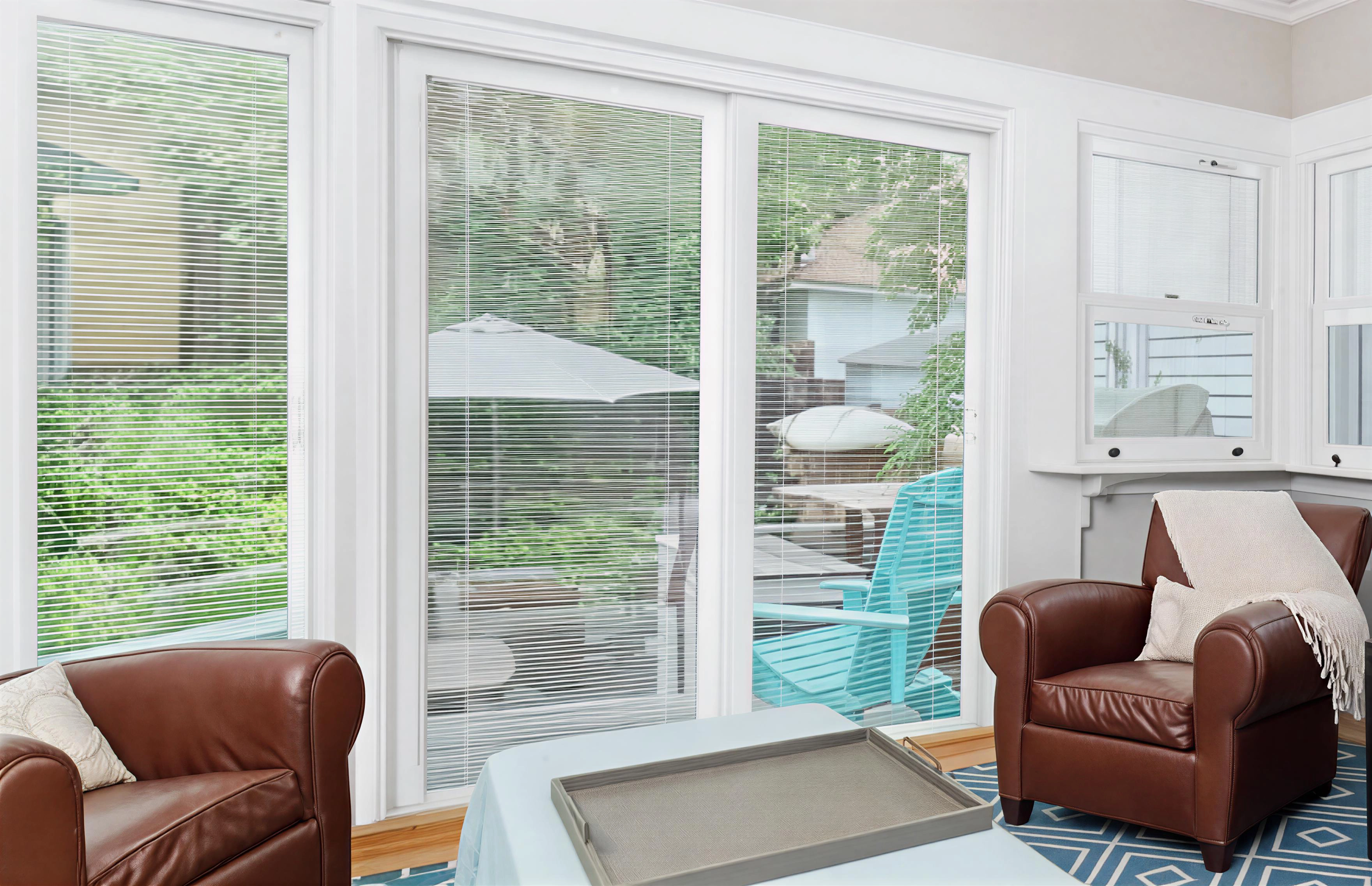

Internal Blinds
⠀
Blink® Blinds + Glass is an insulated glass unit with blinds sealed between the panes, designed for doors and glass panels. The system provides a clean, modern alternative to traditional blinds while improving comfort, safety, and ease of use.
Features & Benefits
- No Dusting, Maintenance Free
- Built to Last
- Energy Efficient
- Child and Pet Friendly
- Easy to Use
- 10+ Year Waranty
- Available in 1” or 7/8” Insulated Glass Unit
- Custom sizes
- Tilt Only or Lift and Tilt Options Available
⠀
Color Options
⠀
White
Tan
Espresso
Slate Gray
Silver Moon
Sand
⠀
Hardware & Handles
⠀
Door systems are equipped with premium hardware and handle components from globally recognized manufacturers, including ROTO Frank, AmesburyTruth, Interlock USA, and Emtek.
These components ensure smooth and reliable operation, enhanced security, and long-term durability, while offering refined aesthetics and a choice of handle styles designed specifically for modern sliding doors.
The hardware is engineered to meet high performance standards and deliver consistent, comfortable everyday use.
⠀

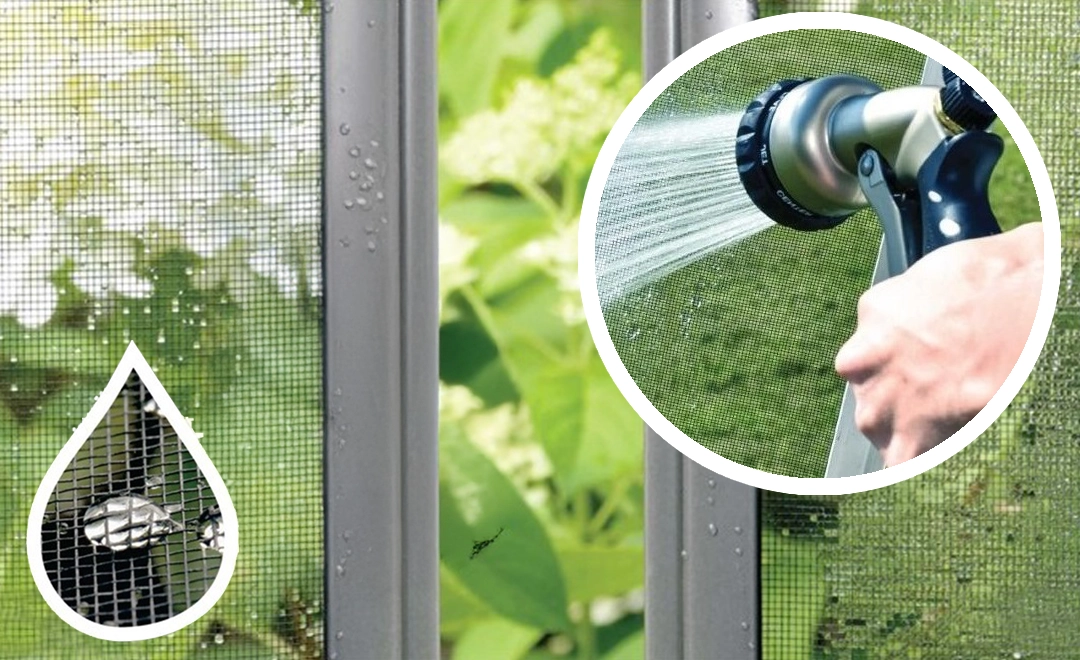

Inspect Screen
⠀
Insect Screens are included with all operable products. Depending on the product type and configuration, screens may be fixed or operable, while always remaining fully removable.
Partial and full-screen options are available, along with an elegant self-retracting screen system for select products.
Screens are built with durable extruded aluminum frames for long-lasting performance and are color-matched to the product for a clean, cohesive appearance.
Screen Mesh Options include standard fiberglass mesh in charcoal or gray, low-visibility BetterVue® fiberglass mesh with Water Shed technology for clearer views and easier cleaning, and PetScreen® designed for added durability. Aluminum mesh is also available in bright or black finishes.
⠀
Key Features
⠀
Natural Light: Maximizes light, perfect for compact spaces
Durability: Weather-resistant, strong, and secure construction
Energy Efficiency: Exceeds the latest Energy Star ratings
Glass Options: Reinforced mullions support large glass openings with side panels or transoms
Design: Modern engineering with both functionality and elegance
Longevity: Built for long-lasting performance with high-quality materials
Top Warranty: One of the industry’s best warranties
Premium Materials: Manufactured with the highest quality materials
Made in the USA: Crafted in the USA with precision and care
Energy Star Partner: Meets the highest energy efficiency standards
Partnership with ARDMOR Windows & Doors: Direct partnership ensures competitive pricing and strict installation standards
⠀
